Spring calving farm effluent system upgrade

This project involved upgrading the effluent management system for a 300-cow spring calving farm in Hikutaia.

Client

Brett Flooks

Date

Location

Hikutaia, New Zealand

Key Products

  • Stone trap and 25m³ sump with Williams child-proof fence
  • Williams 3x3x1.4m solids bunker
  • HDPE-lined effluent storage pond
  • Williams 4-drum pontoon on guides with Yardmaster transfer pump and submersible mixer
  • Williams 6-drum pontoon with Yardmaster pump and stirrer

Project

The farm's previous effluent system used a blocked-off barrier drain with a petrol trash pump, which provided limited and inefficient effluent distribution. The client needed a comprehensive, long-term solution that ensured effective storage, transfer, and controlled application of effluent to pasture.

What we did

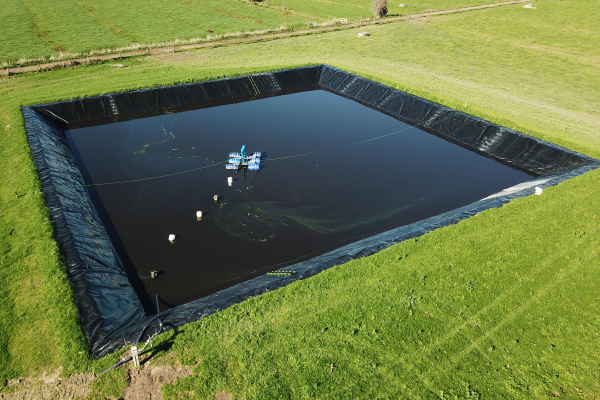

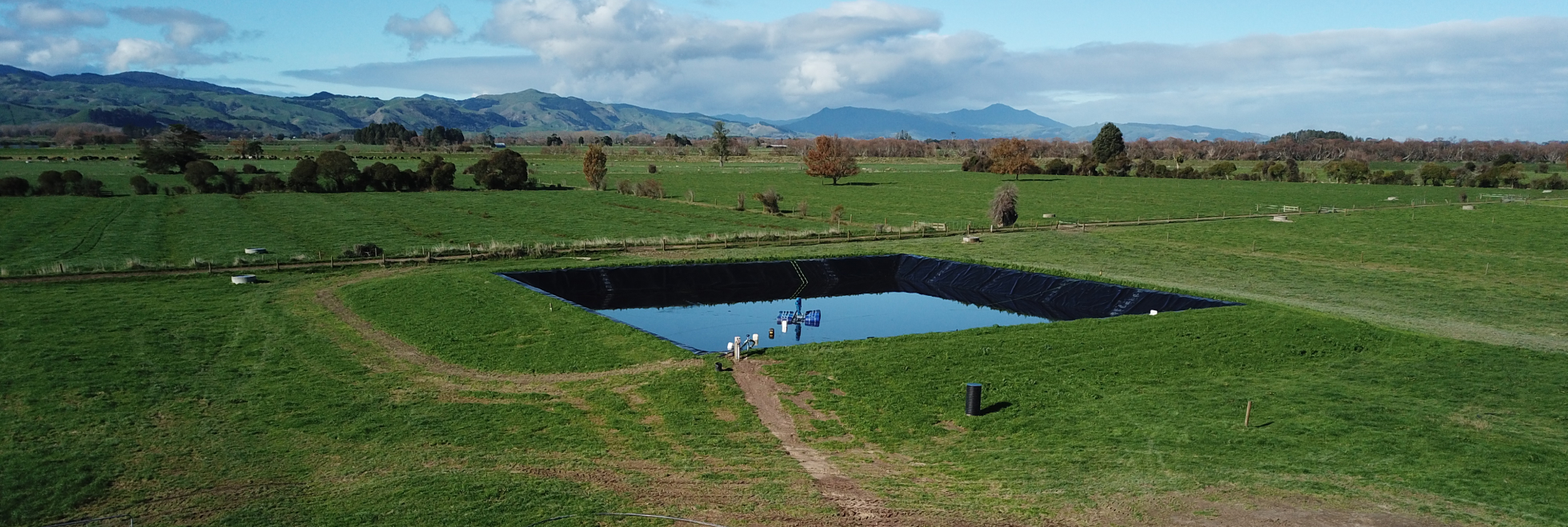

We designed and installed a complete effluent management system, starting with a new pipeline thrust into the centre of the yard to gain height for better flow. Effluent is now directed through a manual rainwater diverter before passing through a stone trap and 25m³ sump. Stone trap cleanings are stored in a sealed tailings bunker. Effluent is then transferred to a suitably sized HDPE-lined storage pond, where it is stirred and pumped down the farm when soil conditions allow. The system includes Williams pontoons with Yardmaster pumps and mixers for efficient effluent handling.

Products used

  • Stone trap and 25m³ sump with Williams child-proof fence
  • Williams 3x3x1.4m solids bunker
  • HDPE-lined effluent storage pond
  • Williams 4-drum pontoon on guides with Yardmaster transfer pump and submersible mixer
  • Williams 6-drum pontoon with Yardmaster pump and stirrer

By the numbers

Here how the impact of Willliams Effluent Solutions system design brought results for Atiamuri farm.

Our effluent system was a constant source of frustration due to frequent blockages. After consulting with the Williams team, we decided to install an effluent stone trap. The difference has been remarkable! Since the installation, we haven't experienced a single blockage, and our operations run much smoother. The Williams team was professional and efficient throughout the process. I highly recommend their services to anyone struggling with similar issues!

Spring calving farm effluent system upgrade

As an off-farm owner, I ultimately chose Williams Effluent Solutions due to their proven experience and the fact that they have the resources to manage the entire project from start to finish. Their ability to take full control of the process gave me peace of mind, knowing that the project would be completed to a high standard. Williams delivered on their promises and made the whole experience stress-free. I would recommend them for anyone looking for a reliable and professional team.

Hamish Hancock
Farm Owner, Wellington
